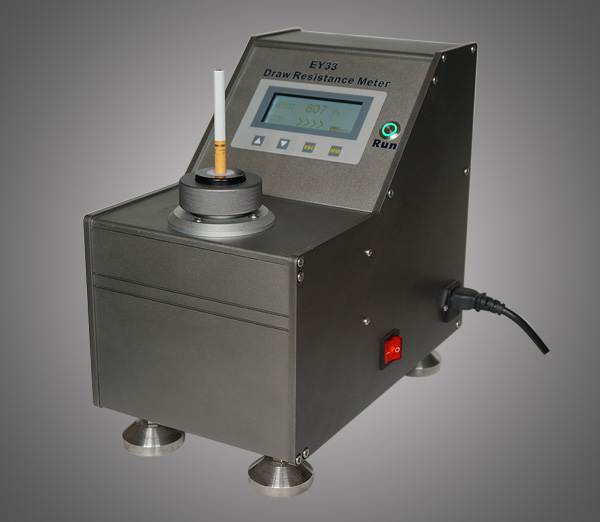

EY33 Draw Resistance Meter




Technical Specifications Download ducument quotation
  • Measuring range: 0 ~ 10kPa
  • Resolution: 1Pa
  • Measuring accuracy: <1%
  • Test time: 15 seconds on average
  • Test head diameter: 7.7mm
  • Test head depth: 9mm
  • Power: AC 100-240V，50/60Hz
  • PC communication: USB port connection
  • Dimensions: L520 x W280 x H300mm
  • Weight: 10kg
  • Warranty: 24 Months
Professional Technologytop
   1.Precision flow sensor, a wide range of Air permeability measurements.
   2.Quick test,EY33 only takes 15 seconds to complete a test.
   3.USB port connection,installed the specimen, press test key, you can quickly get the result,
     the instrument with a USB interface, send the result to Pc to analysis of test results,
      print the standard test report and can also save the test report to EXCEL format.
Test standardtop
   ISO6565,GB/T 22838.5,GB/T 18767
Test principletop
   When simulated human cigarette smoking actions inhalation fixed flow rate of 17.5ml / s flow of air when the suction end of the cigarette,A certain degree of vacuum pressure, this pressure is the inhalation resistance, referred suction resistance, measuring the pressure, the suction resistance can be measured.
Applicationtop
   Tobacco production quality control, tobacco inspection.
Configurationtop
Standard configuration: Mainbody
Optional accessories: 1.LABTest analysis software.
2.Other size test head
